Heat Transfer Cements - Hardening

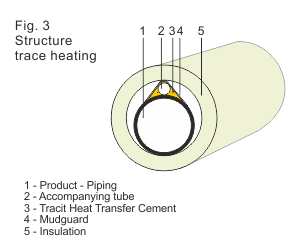

Hardening Heat transfer Cements are used for temperature process maintenanceand freeze protection on straight run piping, valves, elbows, pumps and flanges
This compound forms a highly conductive bond between the heater and process line and is also used with heating jackets, and plate-type coil applications
TRACIT-300 heat transfer compound (cement) hardens when cured. This product is recommended for use on steam, hot oil, and glycol heat tracing (tubing) installations up to 400°C.
This quality is recommended for high temperature process maintenance and freeze protection on straight run piping, valves, elbows, pumps, and flanges.
TRACIT-300 is also used with heating jackets, and with plate-type coil applications exceeding the temperature limits of our non-hardening compounds.
| Typ | TRACIT-300 Heat Transfer Cement self-hardening |  |
||
| Temperatur Range max. min. |
400° C - 184° C |
|||
| Thermal conductivity W/m²K | 13 | |||
| Thermal conductivity W/m²K | 114 - 225 | |||
| Solubility | soluble in most liquids | |||
| Colour | anthrazit | |||
| Grit size | Fine |  |
||
| Hardening | 4 - 12 Hours at 70 - 100° C | |||
| Minimum processing temperature | 0° C | |||
| Shelf life | 1 - 2 Years | |||
| Standard containers (Liter / kg) | 3,8l / 6 kg 19l / 30 kg |
|||
Weight / l |
1,68 kg | |||
Stand 01/20
